Home / LED module / LED High Power Module

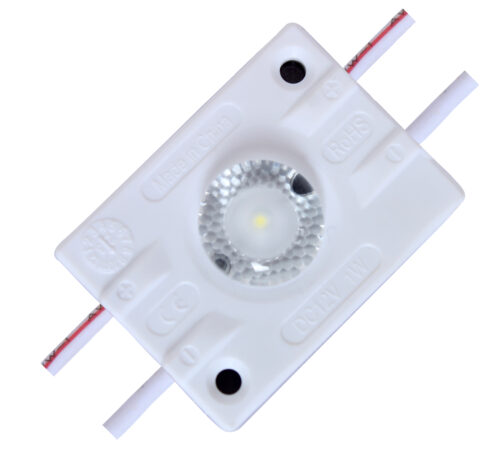

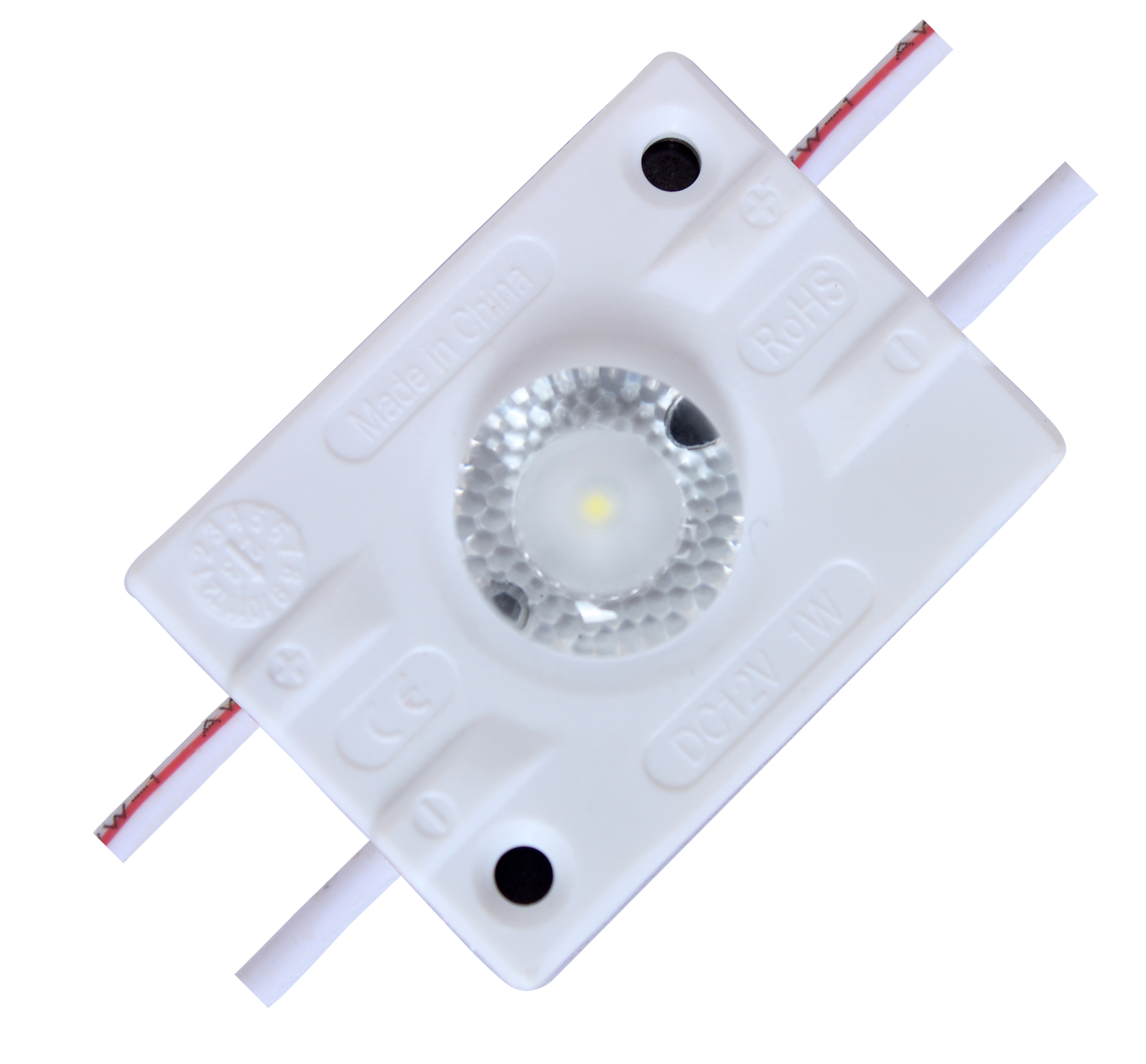

JDS-3828D

Send Inquiry
Categories: LED High Power Module, LED module, Uncategorized
  • Description

SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH

Specifications

JDS Bezel-Free Series3828D

IInput Voltage

DC12V/24V

Watts

1.5W/PCS

Luminous Efficacy

93lm/W

Beam Angle

170°

BIN:

3SDCM

Modules Density

3pcs/ft;8pcs/m

Back Tape

3M tape

Waterproof Grade

IP67

Operating Temp.

-40°~+60℃/-13°~+140 °F

Storage Tamp.

-40°~-70℃/-13°~+158°F

Cascade

20 mods single-ended power feed

50 mods double-ended power feed

Color

WW/W/CW/R/G/B/Y

Warranty

5 Years

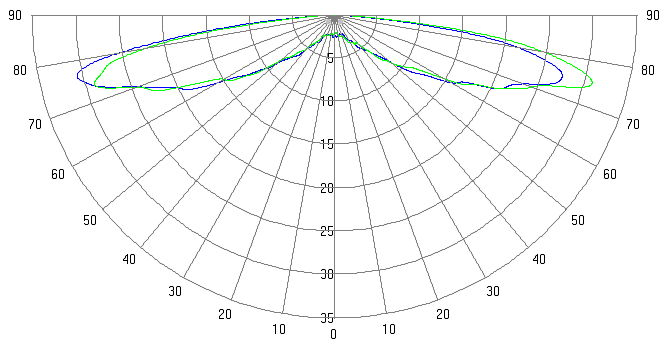

Luminous density distribution

Features

-Excellent waterproof with IP67

-Specially designed for medium-sized signs with depth more than 6cm/2.4inches

-High efficacy LED chips to ensure the max brightness

-Premium components to ensure the stability

-Great heat dissipation design to ensure long life expectancy

Color

Part#

Color Temp

Module/M

Lumens

Lm/W

W/Module

Waterproof

Cool While



10000K

8pcs/M

140±3 Im/pc

93lm/W

1.5W

IP67

Pure While



6500K

8pcs/M

140±3 Im/pc

 93lm/W

1.5W

IP67

Warm White



3000K

8pcs/M

140±3Im/pc

 93lm/W

1.5W

IP67

Profile Drawings

Power Supply Maximum Loading Capacity*Packaging information



PowerSupply

35W

60W

100W

150W

240W

Cascade

Bag

Box

Weight

Dimension

By mod

19pcs

32pcs

53pcs

80pcs

128pc

     20pcs

100pcs

2000pcs

19kg

50*30*35cm

By Footage

7.9ft

13.1ft

22ft

32.8ft

52.5ft

    *Due to voltage drop. a maximum of 50 modules can be run before

By Meter

2.4m

4m

6.7m

10m

16m

Power needs to be reintroduced into theline of modules.
