SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

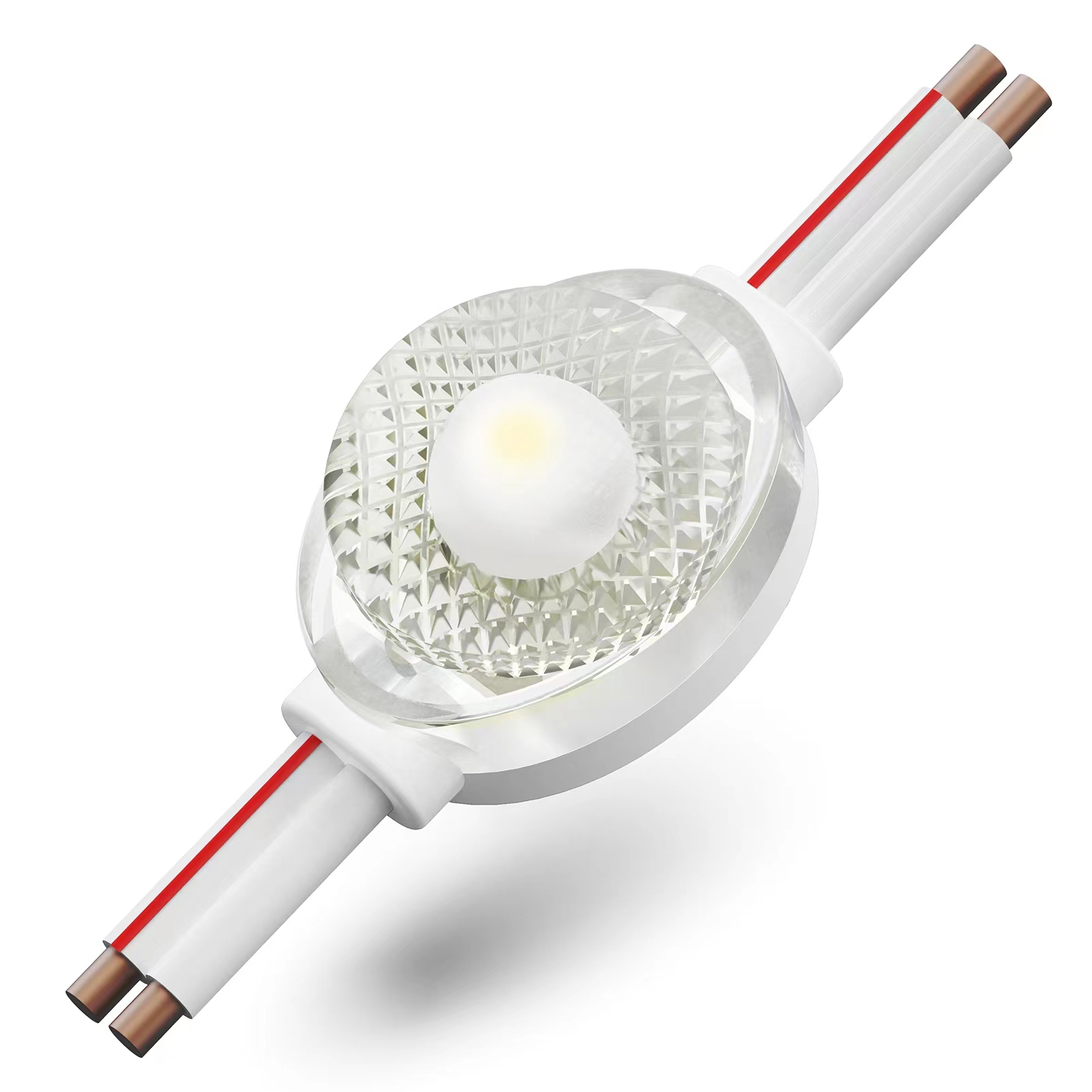

JDS Bezel-Free Series 1812B
| Input Voltage | DC12V |
| Power | 0.36W/PCS |
| Luminous | 170lm/W |
| Beam Angle | 175° |
| Waterproof Grade | IP68 |
| Size | 18*12*9mm |
| Operating Temp. | -20°~+50℃ |
| Storage Tamp. | -30°~+80℃ |
| Cascade QTY | 50 mods single-ended power feed |
| 100 mods double-ended power feed | |
| Color | WW/W/CW/R/G/B/Y |
| Warranty | 5 Years |
Features
-New technology to get high efficiency(170lm/w)
-Specially designed for medium-sized signs with depth more than 30-50mm
-High efficacy LED chips to ensure the max brightness
-Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
| Color | Color Temp | Lumens | Lm/W | Input Voltage | W/Module | Waterproof | |
| Cool While | 10000K | 60±3 Im/pc | 160lm/W | DC12V | 0.36W | IP68 | |
| Pure While | 6500K | 62±3 Im/pc | 170lm/W | DC12V | 0.36W | IP68 | |
| Warm White | 3000K | 62±3Im/pc | 170lm/W | DC12V | 0.36W | IP68 |
Optical Data Distribution

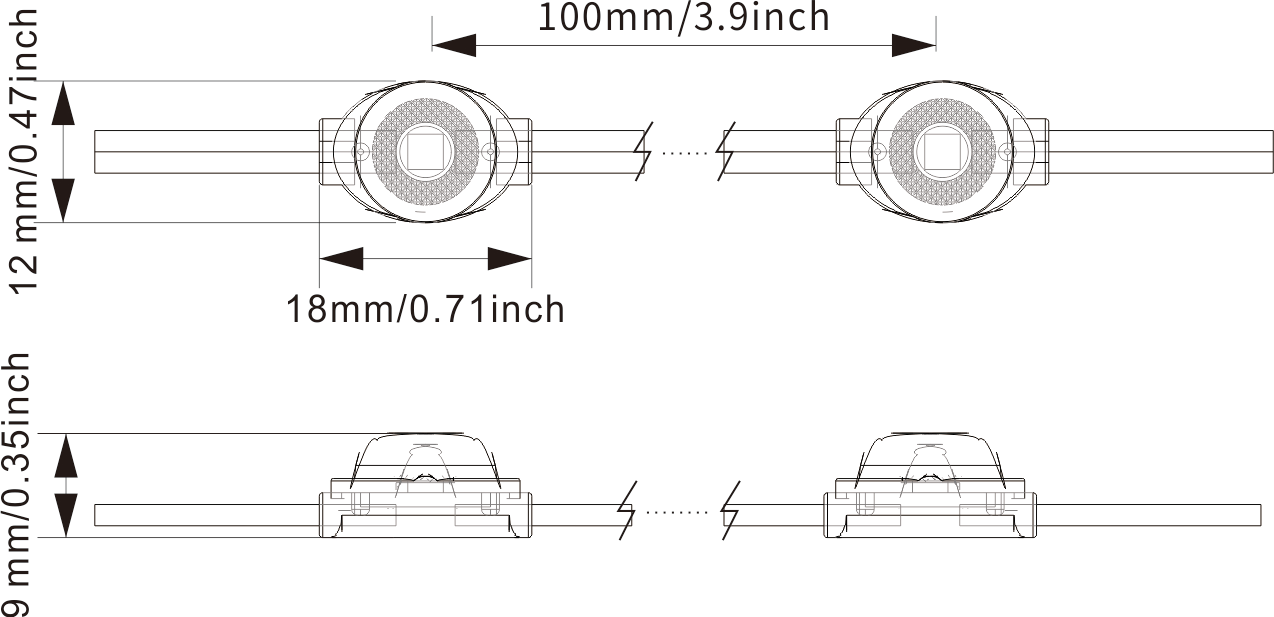

Product Dimension

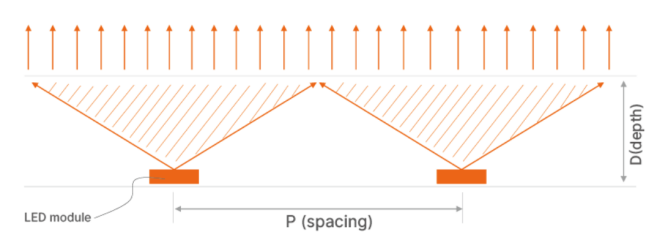

Application Notes

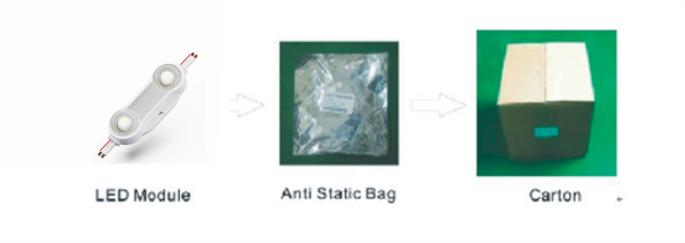

Cascade | Bag | BoX | Weight | Dimension |
50pcs | 200pcs | 5000pcs | 16kg | 50*35*30cm |
