SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

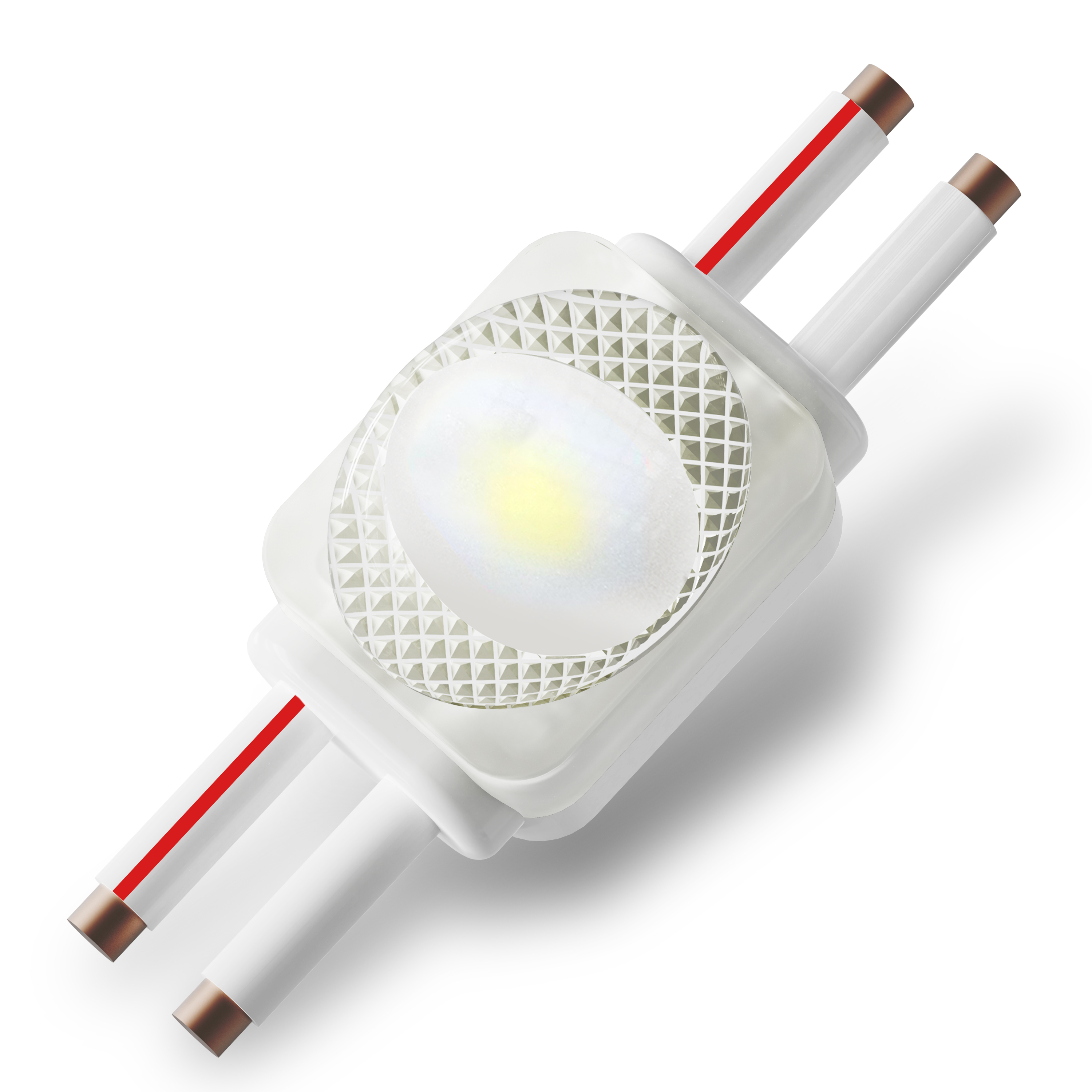

JDS Bezel-Free Series 1208B
Input Voltage | DC12V |
Power | 0.36W/PCS |
Luminous | 138lm/W |
Beam Angle | 120*170° |
Waterproof Grade | IP68 |
Size | 12*8*8.5mm |
Operating Temp. | -20°~+50℃ |
Storage Tamp. | -30°~+80℃ |
Cascade QTY | 50 mods single-ended power feed |
100 mods double-ended power feed | |
Color | WW/W/CW/R/G/B/Y |
Warranty | 5 Years |
Features
-New technology to get high efficiency(138lm/w)
-Specially designed for medium-sized signs with depth more than 30-50mm
-High efficacy LED chips to ensure the max brightness
-Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
Color | Color Temp | Lumens | Lm/W | Input Voltage | W/Module | Waterproof |
|
Cool While | 10000K | 50±3 Im/pc | 138lm/W | DC12V | 0.36W | IP68 |
|
Pure While | 6500K | 50±3 Im/pc | 138lm/W | DC12V | 0.36W | IP68 |
|
Warm White | 3000K | 50±3Im/pc | 138lm/W | DC12V | 0.36W | IP68 |

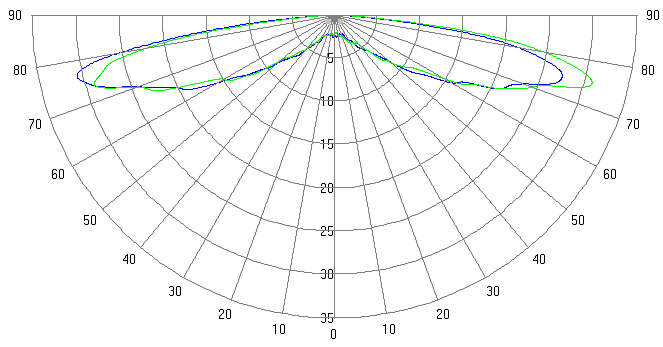

Optical Data Distribution

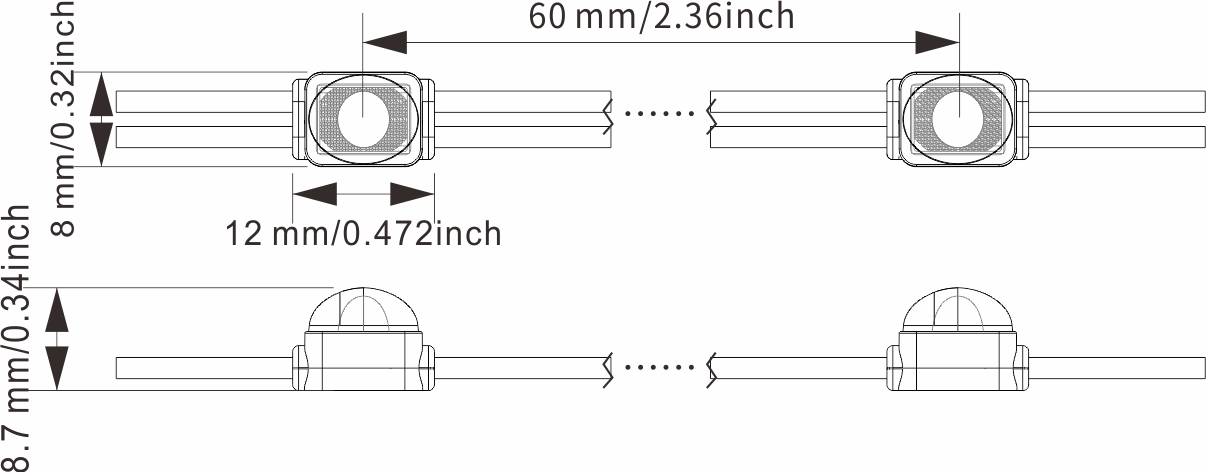

Product Dimension

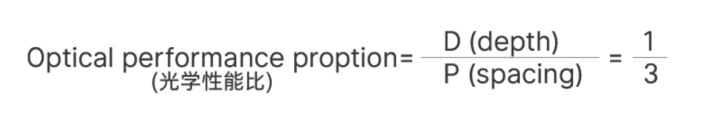

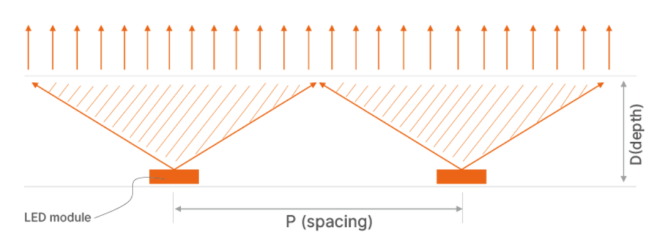

Application Notes
Cascade | Bag | BoX | Weight | Dimension |
50pcs | 500pcs | 5000pcs | 16kg | 50*35*30cm |
