SPECIALLY DESIGNED FOR MEDIUM-SIZED SIGNS WITH SHALLOW DEPTH
Specifications

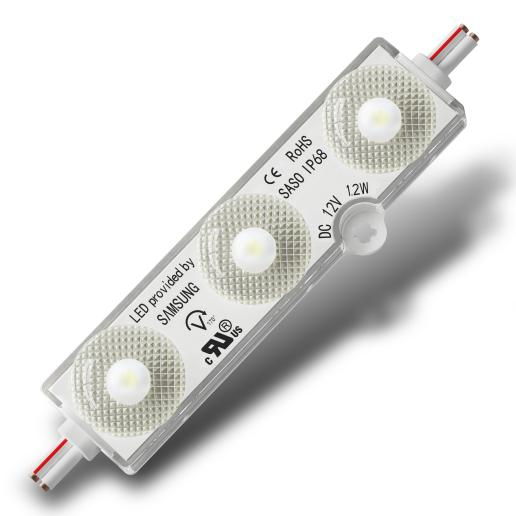

JDS Bezel-Free Series 6515B
| Input Voltage | DC12V/24V |
| Power | 1.2W/PCS |
| Luminous | 150lm/W |
| Beam Angle | 175° |
| Waterproof Grade | IP68 |
| Size | 65*15*10mm |
| Operating Temp. | -20°~+50℃ |
| Storage Tamp. | -30°~+80℃ |
| Cascade QTY | 20 mods single-ended power feed |
| 50 mods double-ended power feed | |
| Color | WW/W/CW/R/G/B/Y |
| Warranty | 5 Years |
Features
-New technology to get high efficiency(150lm/w)
-Specially designed for medium-sized signs with depth more than 80-120mm
-High efficacy LED chips to ensure the max brightness
-Premium components to ensure the stability
-Great heat dissipation design to ensure long life expectancy
| Color | Color Temp | Lumens | Lm/W | Input Voltage | W/Module | Waterproof | |
| Cool White | 10000K | 180±3 Im/pc | 150lm/W | DC12V/24V | 1.2W | IP68 | |
| Pure White | 6500K | 186±3 Im/pc | 150lm/W | DC12V/24V | 1.2W | IP68 | |
| Warm White | 3000K | 186±3Im/pc | 150lm/W | DC12V/24V | 1.2W | IP68 |

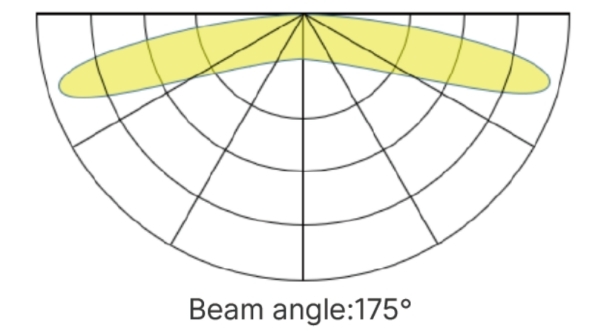

Optical Data Distribution
Product Dime

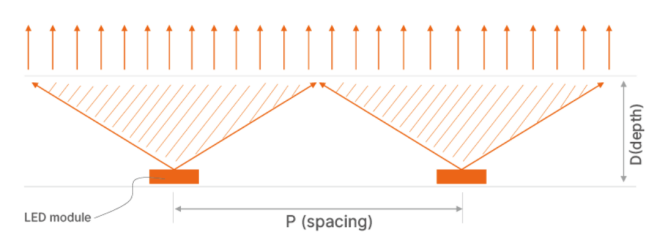

Application Notes

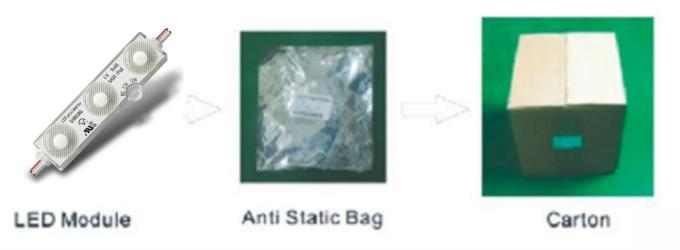

| Cascade | Bag | BoX | Weight | Dimension |
| 20pcs | 100pcs | 1500pcs | 19kg | 50*35*30cm |
